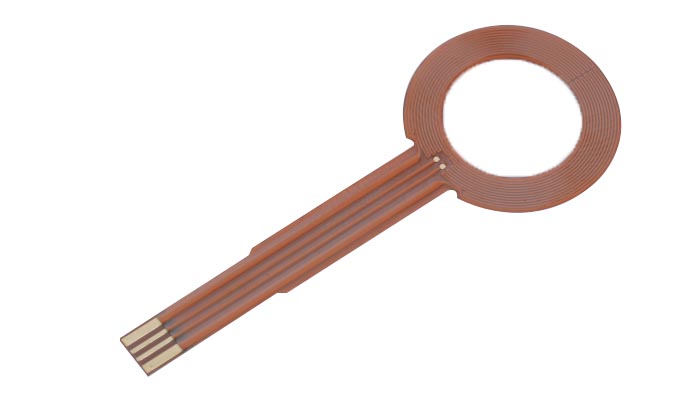

Design Considerations for Polyimide Heater with Golden Fingers

Kapton heaters are versatile heating elements used in various applications, from aerospace to medical devices, where flexible and efficient heating is crucial. When designing these heaters with gold fingers for direct electrical connection with connectors such as Molex, HRS or JAE connectors, several key considerations must be addressed to ensure optimal performance and reliability.

1. Choice of Conductor: Copper Foil

The choice of conductor is restricted to copper foil, following a production process similar to that of flexible PCBs, where the integration of gold fingers is pivotal.  This ensures that the polyimide heater maintains optimal electrical conductivity and reliability, essential for various applications demanding flexible and efficient heating solutions. If you are not familiar with the selection of Metal Conductors, you can check out our another blogs on "Which Conductor is Best for Your Polyimide Heater".

2. Surface Treatment: ENIG (Electroless Nickel Immersion Gold)

Gold fingers on polyimide heaters require surface treatment with ENIG. This process involves coating the copper foil with a layer of electroless nickel followed by immersion in gold. ENIG provides a durable and reliable surface finish that ensures good electrical conductivity and corrosion resistance, which is crucial for long-term performance, especially in applications where frequent insertion into connectors is necessary.

3. Mechanical Reinforcement: Stiffener Integration

To enhance durability and ensure compatibility with connectors, stiffeners are integrated at the gold finger areas of the polyimide heater. Stiffeners provide mechanical support, prevent flexing or bending that could damage the gold fingers, and maintain consistent electrical contact with connectors over the heater's lifespan.

Designing polyimide heaters with gold fingers involves careful consideration of conductor choice, surface treatment, mechanical reinforcement, and compatibility with connectors.  HRX Heaters emphasizes these design principles to ensure that polyimide heaters deliver optimal performance, durability, and reliability in diverse applications requiring flexible and efficient heating solutions.  By adhering to rigorous testing standards, HRX Heaters guarantees that their polyimide heaters meet the highest industry standards for quality and functionality.
