Heaters Design

At HRX heaters, we specialize in the design and manufacturing of high-performance heaters tailored to meet a wide range of industrial and commercial applications. Our Heater Design Specifications encompass the critical parameters required to complete a heater design, aiming to deliver reliable, efficient, and cost-effective heating solutions. This includes selecting the appropriate materials and ensuring optimal thermal efficiency.

Hear are heater design specifications:

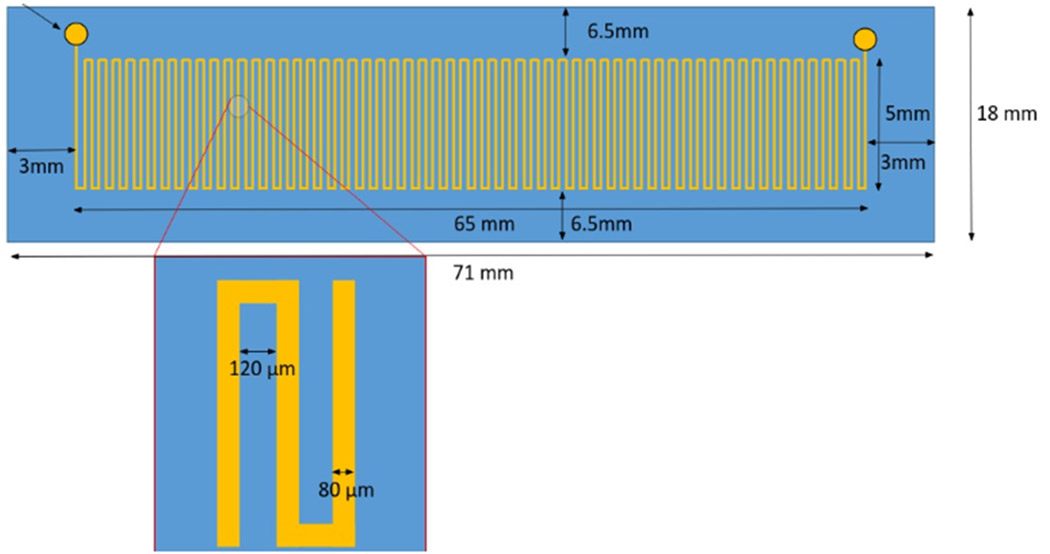

1. Dimensions. Provide length and width (mm). For irregular shapes, CAD drawings or samples are required.

2. Resistance parameters. The voltage, resistance/power required for the heater.

3. Heating environment. The product needs to be heated to a certain temperature in an environment with a specific ambient temperature.

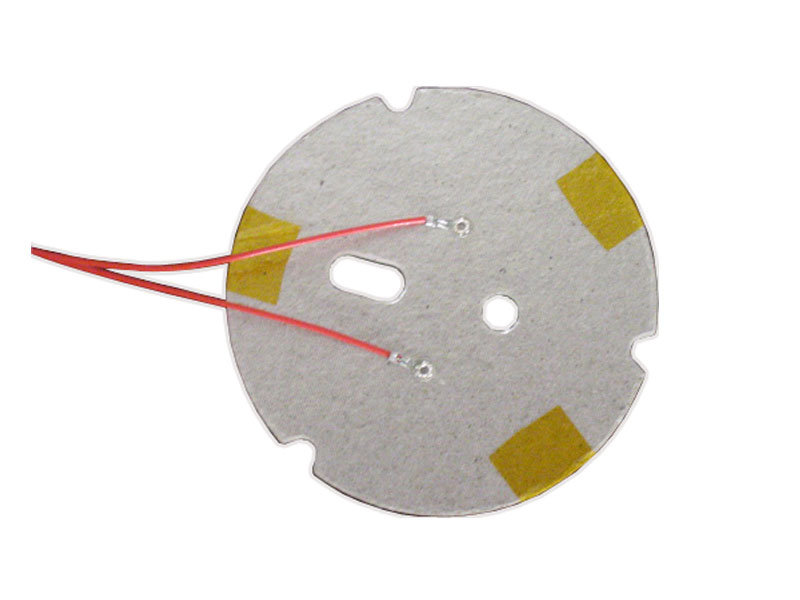

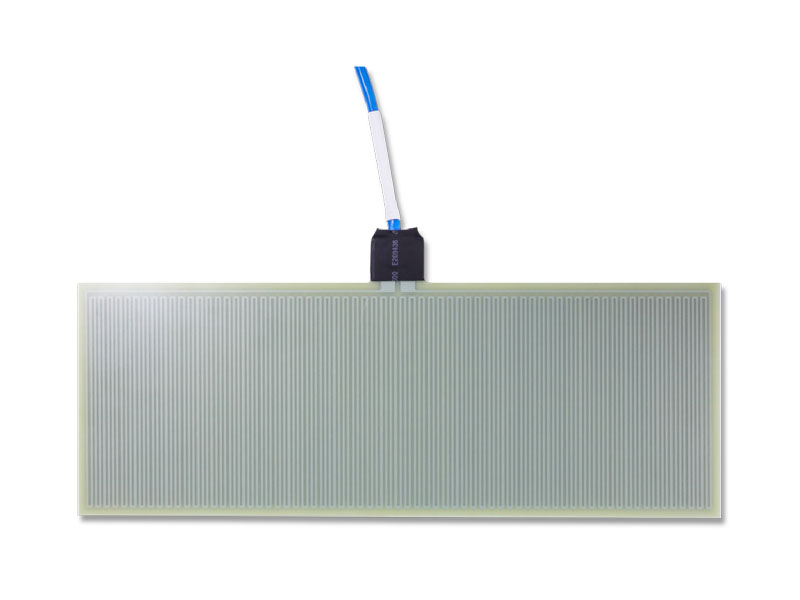

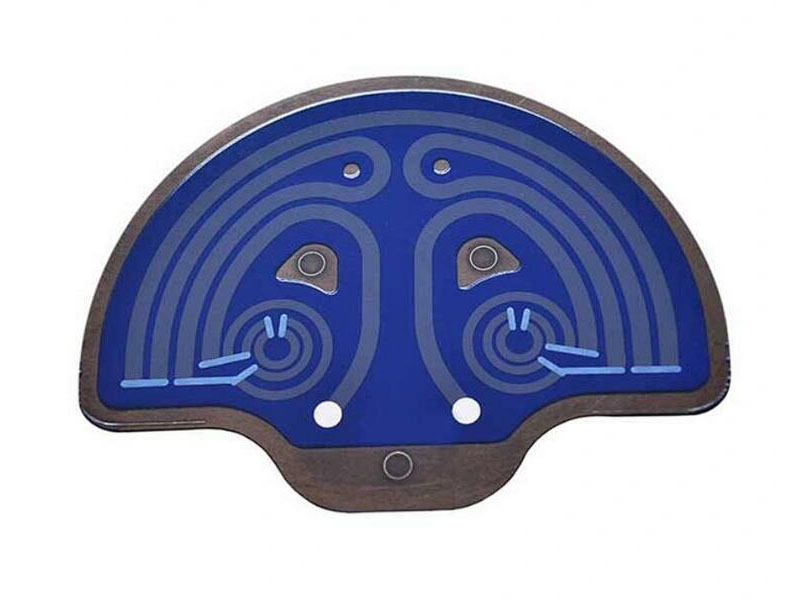

4. Material type of the heater. Polyimide/Kapton heater, PET/Transparent heater, Silicone heater, Thick film heater, Mica heater, Epoxy resin FR4 heater. Materials can be selected based on the application area or temperature requirements of your product.

5. Thickness requirements for the heater, different heaters have different thicknesses. If the thickness is not important, we will design it according to the standard thickness.

6. Backing adhesive. Whether a backing adhesive is needed. If so, please describe what material the heater needs to be adhered to.

7. Leads/Wires. Whether soldering wires are needed. If so, please specify the length of the wires.

8. Connectors. Whether the wire need to be matched with connectors. If yes, please provide the part number or specifications of the connectors.

9. Temperature sensors. Whether you have your own temperature control equipment and whether the heater needs to be compatible with a temperature probe or NTC/RTD (please see Accessory page).

10. Sample quantity and batch quantity. We will provide an offer sheet based on the quantity you required.
