Lead Wire Design Options for Heaters

When designing a heater, the placement of lead wires plays a crucial role in ensuring optimal performance and durability. There are multiple options available for positioning the lead wires, and the choice largely depends on the application and how the heater will be installed. Here are some key considerations and design options:

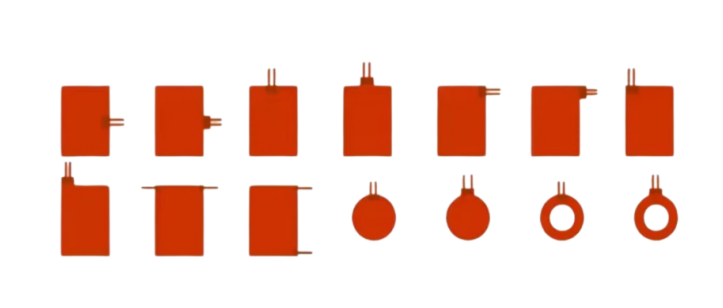

1. Common Lead Wire Positions:
Typically, heater lead wires are placed at one side of the heater, either in the middle or along the edge. The central position is often used in standard designs, as it offers a balanced and compact layout. However, for specific applications where the heater is mounted between objects or sandwiched tightly, an edge placement might be more suitable to prevent interference or strain on the wires.

2. Avoiding the Heating Zone:
In scenarios where the heater is compressed between two surfaces, it’s important to keep the lead wires away from the heating zone. If the wires are placed directly in the heated area, they may experience excessive heat exposure, leading to potential failure. A practical solution is to extend the heater's design slightly beyond the active heating area and create a small "tab" where the wires can be connected. This allows for safe wire attachment without compromising the heater’s functionality.

3. Lead Wire Configurations:
Heaters are typically designed with two lead wires, which can be arranged in various ways. Both wires can exit from the same location for a neat and centralized layout, or they can be placed in different positions depending on the installation needs. For example, if the application requires flexibility in wiring, having the leads exit from opposite sides or corners may provide more versatility. These configurations can be customized based on the client’s specific requirements to ensure the best fit for the application.

4. Customization Based on Client Needs:
The beauty of heater design lies in its flexibility. Manufacturers can tailor the lead wire placement and design according to customer specifications. Whether it’s adjusting the position of the wires, changing the lead type, or considering the environmental conditions the heater will be exposed to, the design can be fully optimized to suit the application. Properly planning the wire exit points not only enhances performance but also improves the reliability and longevity of the heater.

In summary, the design of heater lead wires may seem like a small detail, but it is a critical aspect of ensuring the heater performs efficiently and reliably. By selecting the appropriate wire placement, considering environmental factors, and customizing the design based on the application, you can maximize the effectiveness of your heater solution.
