Transparent Heaters: Types, Sizes, Parameters, and Applications

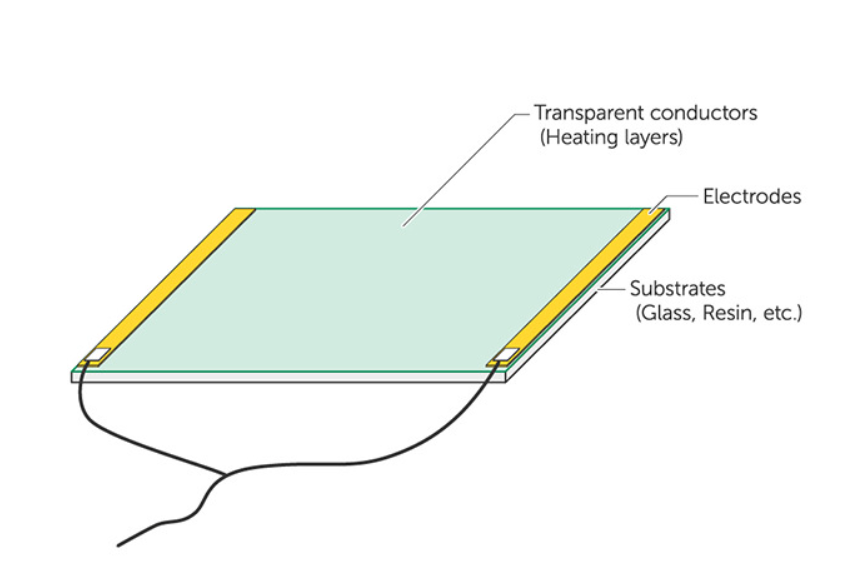

Transparent conductive heating films are essential components in modern electronics, offering both transparency and electrical conductivity. They are widely used in touchscreens, displays, solar cells, and flexible electronics. This article explores the types, sizes, key parameters, and specifications of these films to help you choose the right material for your application.

Types of Transparent Heating Films

There are two primary types of transparent conductive heating films:

ITO (Indium Tin Oxide) Films

Made from a conductive oxide layer (indium tin oxide) deposited on glass or PET substrates.

High transparency (80%-90%) and excellent conductivity (resistivity: 10-100 Ω/sq).

Common applications: touchscreens, LCD displays, and solar cells.

PET (Polyethylene Terephthalate) Films

Use a flexible polyester base with a conductive coating.

Lower cost but slightly reduced transparency (70%-80%) and higher resistivity (100-300 Ω/sq).

Ideal for flexible electronics, wearable devices, and battery applications.

Available Sizes

Transparent conductive films come in various dimensions, often customized based on client needs. Common size ranges include:

Width: 0.5 mm – 1500 mm

Thickness: 0.012 mm – 0.5 mm

Length: Customizable

Key Parameters

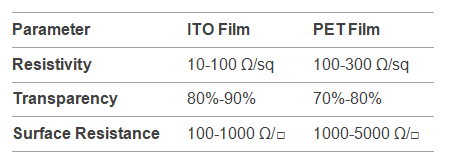

When selecting a transparent heating film, consider the following parameters:

Common Specifications by Application

Different industries require specific film properties. Here are typical specifications:

1. Touchscreens

ITO Film: 0.7 mm – 1.1 mm thickness

PET Film: 0.125 mm – 0.188 mm thickness

2. Displays (LCD, OLED)

ITO Film: 0.125 mm – 1.1 mm thickness

PET Film: 0.125 mm – 0.188 mm thickness

3. Solar Cells

ITO Film: 0.1 mm – 0.5 mm thickness

PET Film: 0.1 mm – 0.3 mm thickness

Transparent heaters are crucial for modern electronics, balancing transparency and electrical performance. ITO films remain the standard for high-end applications, while PET films offer a cost-effective alternative for flexible devices. With advancements in nanomaterials, the future of transparent heating films looks even more promising.
