The Key Differences Between Ceramic Heaters and PTC Heaters

When it comes to electric heating solutions, ceramic heaters and PTC (Positive Temperature Coefficient) heaters are two popular choices. While both use ceramic-based technology, they differ significantly in construction, performance, and temperature control. Understanding these differences can help you choose the right heater for your needs.

1. Construction and Heating Mechanism

Ceramic Heater

• Material: Made from alumina (Al₂O₃) substrate, with printed/sintered conductive traces to achieve desired resistance and power output (similar to a ceramic PCB).




• Heating Method: Uses resistive heating, where electricity flows through the conductive traces, generating heat.




• Power & Speed: High power density and rapid heating, making it ideal for applications requiring quick warmth.




• Temperature Control: Requires an external thermostat for precise temperature regulation. Without control, it can overheat.

PTC Heater

• Material: Contains a PTC ceramic element (usually barium titanate-based) encased in a metal or plastic housing.




• Heating Method: Relies on the self-regulating property of PTC material—resistance increases with temperature, reducing current flow and limiting heat output.




• Power & Speed: Self-limiting, meaning it automatically stabilizes at a certain temperature without external control. However, heating speed is slower than ceramic heaters.




• Temperature Control: No external thermostat needed, but the temperature cannot be manually adjusted beyond its inherent limit.

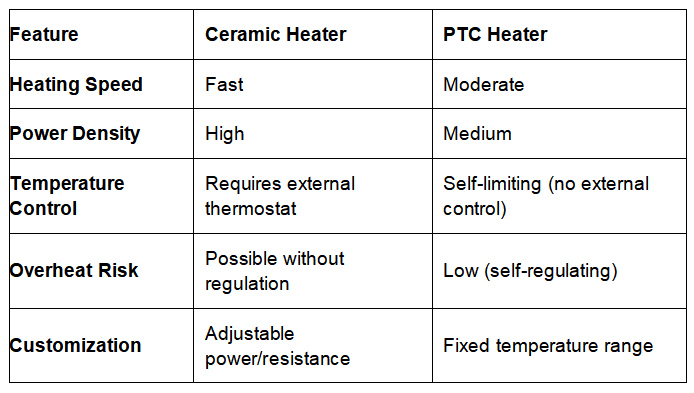

2. Key Differences

3. Applications

Ceramic Heater

1. Industrial Equipment: High-power heating in machinery, 3D printers, and lab instruments.




2. Consumer Appliances: Hair dryers, space heaters, and soldering irons.




3. Automotive: Seat heaters, defrosting systems (with external control).

PTC Heater

1. HVAC Systems: Air heaters in cars, fan heaters, and dehumidifiers.




2. Consumer Electronics: Coffee warmers, hand dryers, and heated insoles.




3. Safety-Critical Uses: Where overheating must be avoided (e.g., medical devices).

4. Which One Should You Choose?

Need fast, high-power heating? → Ceramic Heater (with a thermostat).

Prefer automatic temperature control and safety? → PTC Heater.

Custom power/resistance requirements? → Ceramic Heater (more adjustable).

Budget-friendly, simple heating? → PTC Heater (no extra controls needed).

Both ceramic heaters and PTC heaters have unique advantages. Ceramic heaters offer high power and fast heating but require external temperature control, while PTC heaters are self-regulating and safer but less flexible in customization. Your choice depends on heating speed, control needs, and safety requirements.
