Temperature Sensor Thermocouple

Thermocouples are widely used temperature sensors known for their versatility, durability, and wide temperature range. Thermocouples consist of two dissimilar metal wires joined at one end to create a junction known as the measuring junction. The principle behind thermocouples is the Seebeck effect, where a temperature difference between the measuring junction and the other ends of the wires (called the reference junction) generates a voltage. This voltage is directly proportional to the temperature difference between the two junctions. By measuring this voltage, the temperature at the measuring junction can be determined.

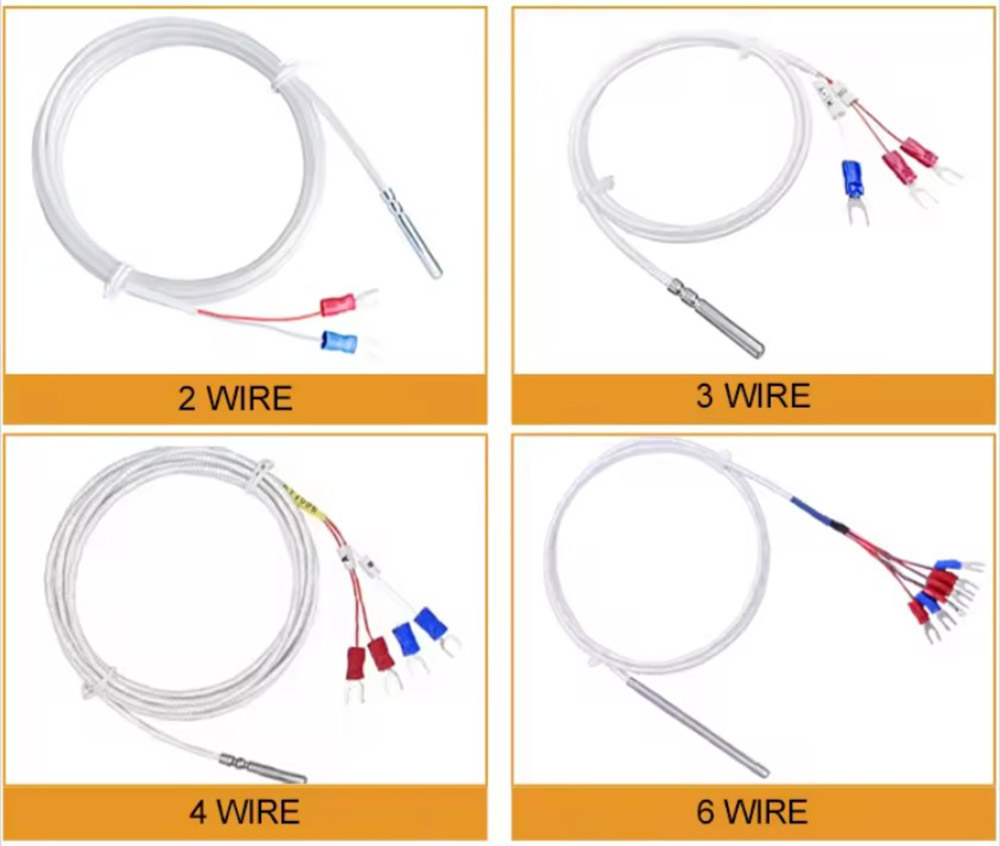

K/J/E types ONLY 2 wires, PT100/PT1000 are 3 wires, 2 wires, 4 wires, 6 wires are optional.


Temperature sensor thermocouple


Standard specifications for the temperature sensor thermocouple.


Basic parameters

Selectable specifications

Model Number

K type, E type, J type, PT100, PT1000

Cable Material

Shielded wire,   Fiberglass, PTFE, Silicone

Probe material

304 stainless   steel

Probe   diameter(mm)

φ12, φ16, φ20,   φ25 or customized

Probe length   (mm)

50, 100, 150,   200, 300 or customized

Cable length   (m)

1, 2, 3, 4, 5,   10, 15, 20 or customized

Temperature   range

-50~650°C

Mounting type

Screw, probe or customized

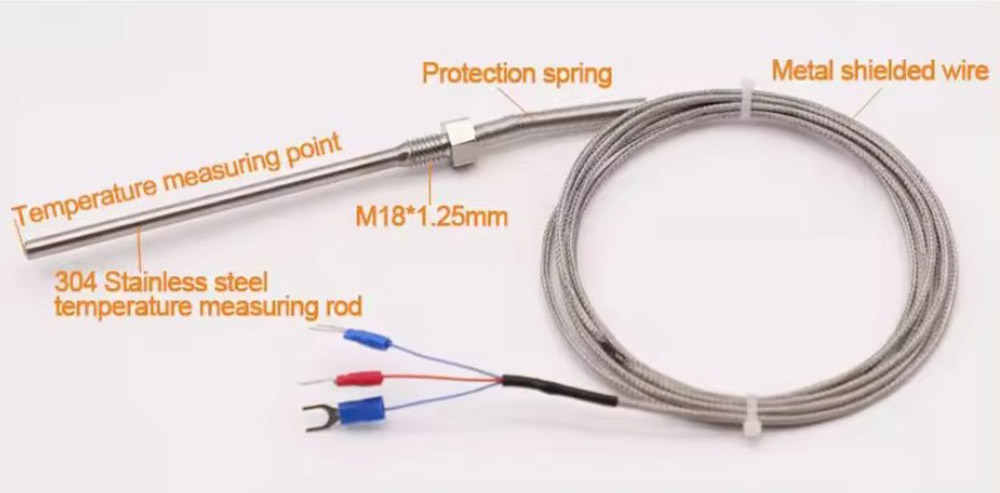

Illustrated introduction of the thermocouple probe.


Illustrated introduction of the thermocouple probe

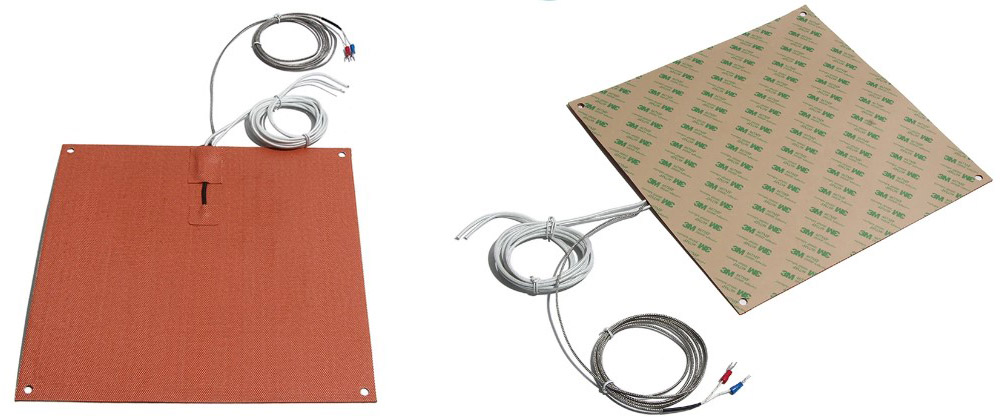

The above thermocouple probe can be separately delivered to match your temperature controller. Additionally, we can embed the thermocouple probe directly into the heater, as shown in the pictures below, you only need to request the thermocouple probe in the heater design.



Temperature Sensor Thermocouple

Custom Your Heaters

IHRX can supplies all kinds of heaters customized for your business, Please contact us by follow ways
